Product Name: HPM06(12)-ND2-WW1 R290 EVI DC inverter Air to Water Split Heat Pump
Type: Air Source Heat Pump
Energy Efficiency Rating: Class A+++
Electric Heating Power: 3kw
Compressor: EVI DC Inverter Compressor
Refrigerant: R290
Power Supply: 220V/50Hz/1ph
App-controlled: YES
Storage / Tankless: Storage
Feature: Eco-Friendly, Easy Installation, Easy Operation, Energy-saving, Safe, High Efficiency

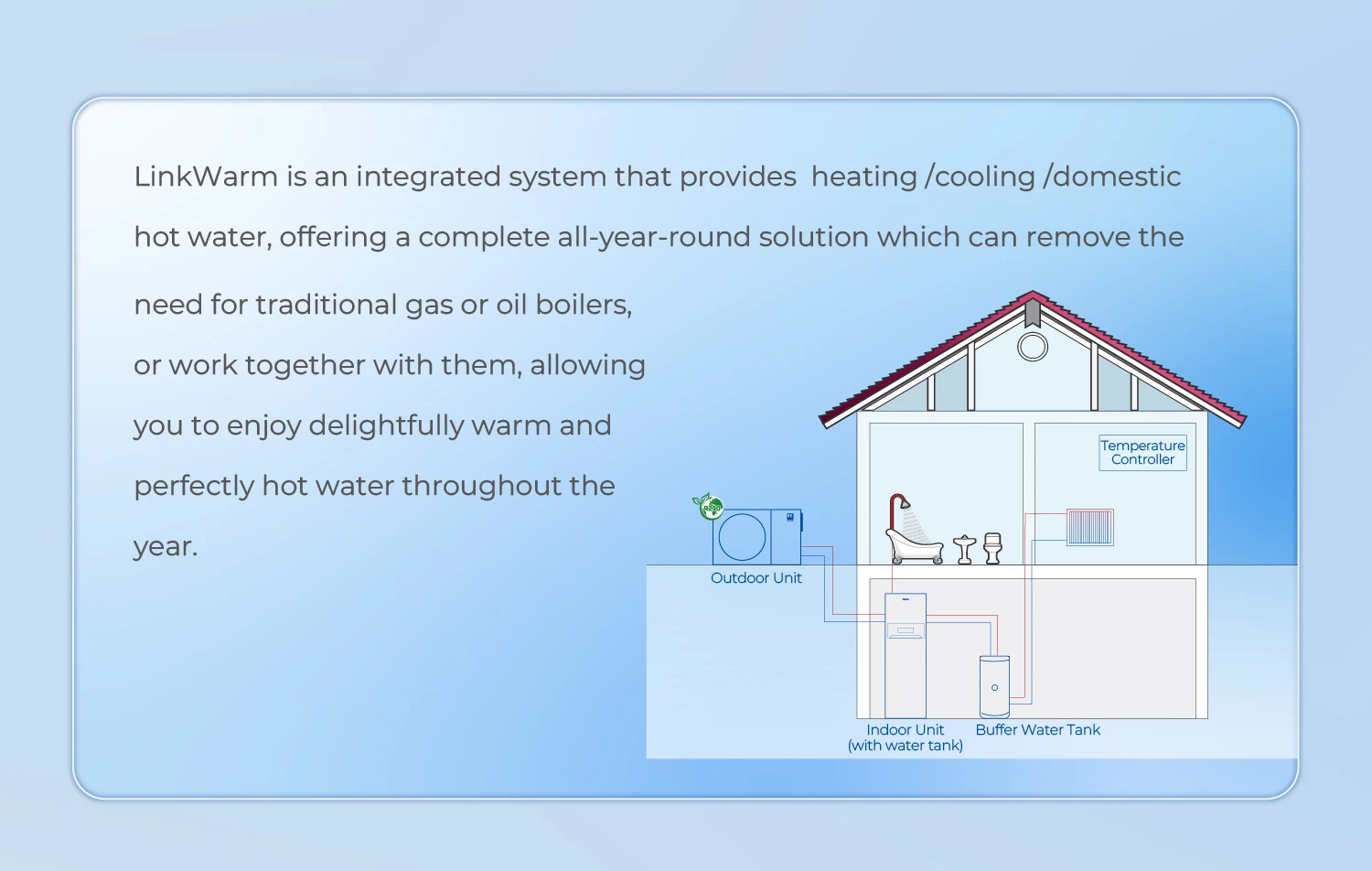

Function: Domestic Hot Water, Household Heating and Cooling
Category: Tags: , , ,
Products Description

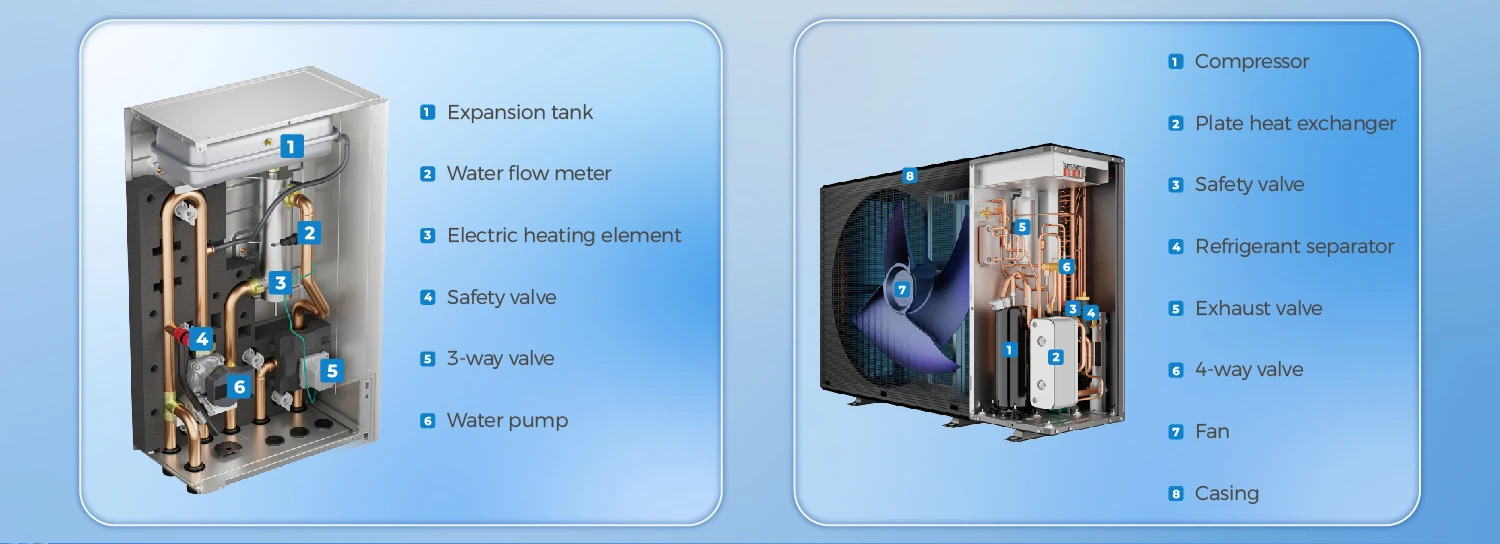

Indoor Unit
Model HPM06(12)-ND2-WW1
Power source (V/Hz) 220/50
Expansion tank (L) 8
Electric heating power (kW) 3
Maximum pump head (m) 9
Display TFT

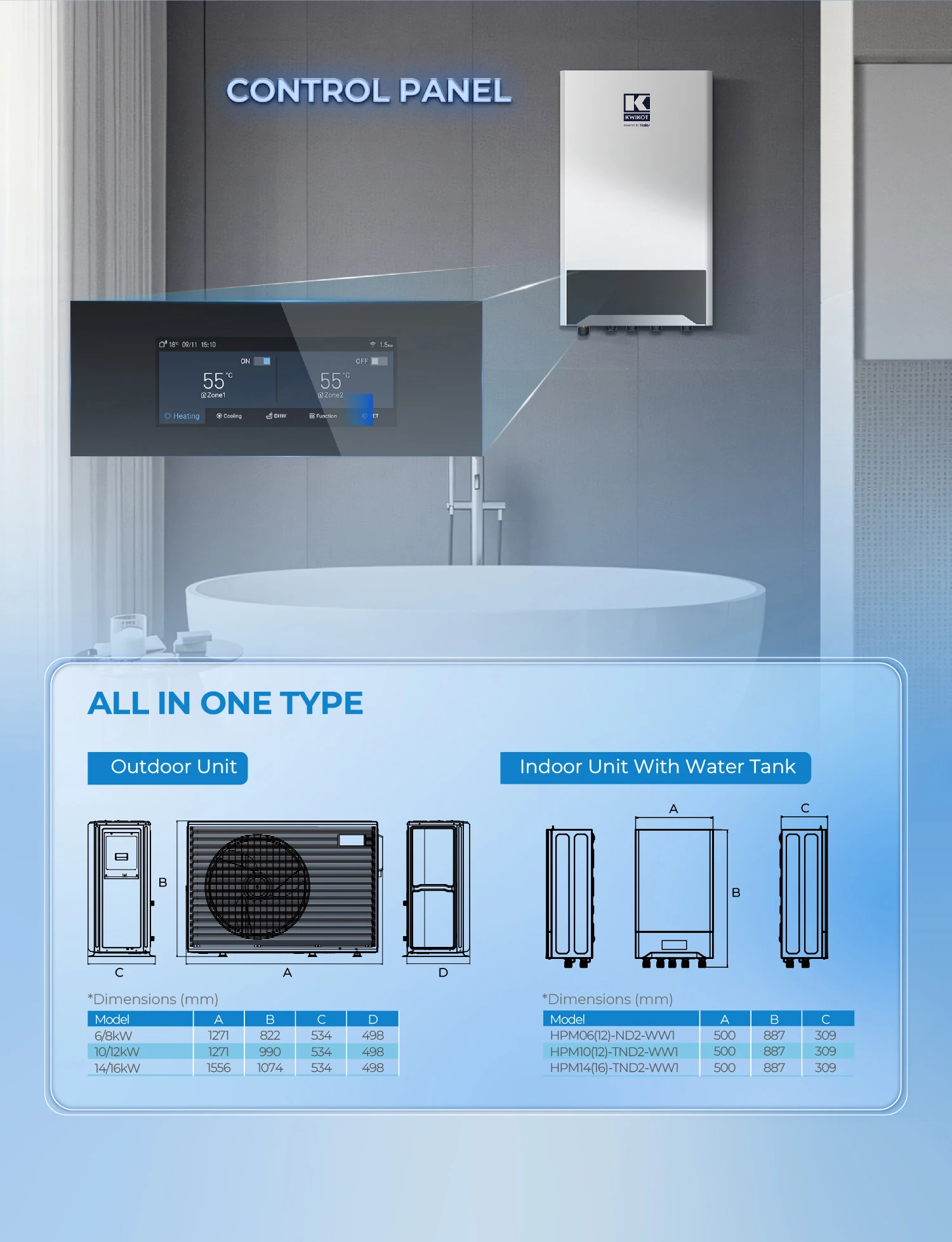

Dimensions, unpacked (mm) 500×887×309
Outdoor Unit

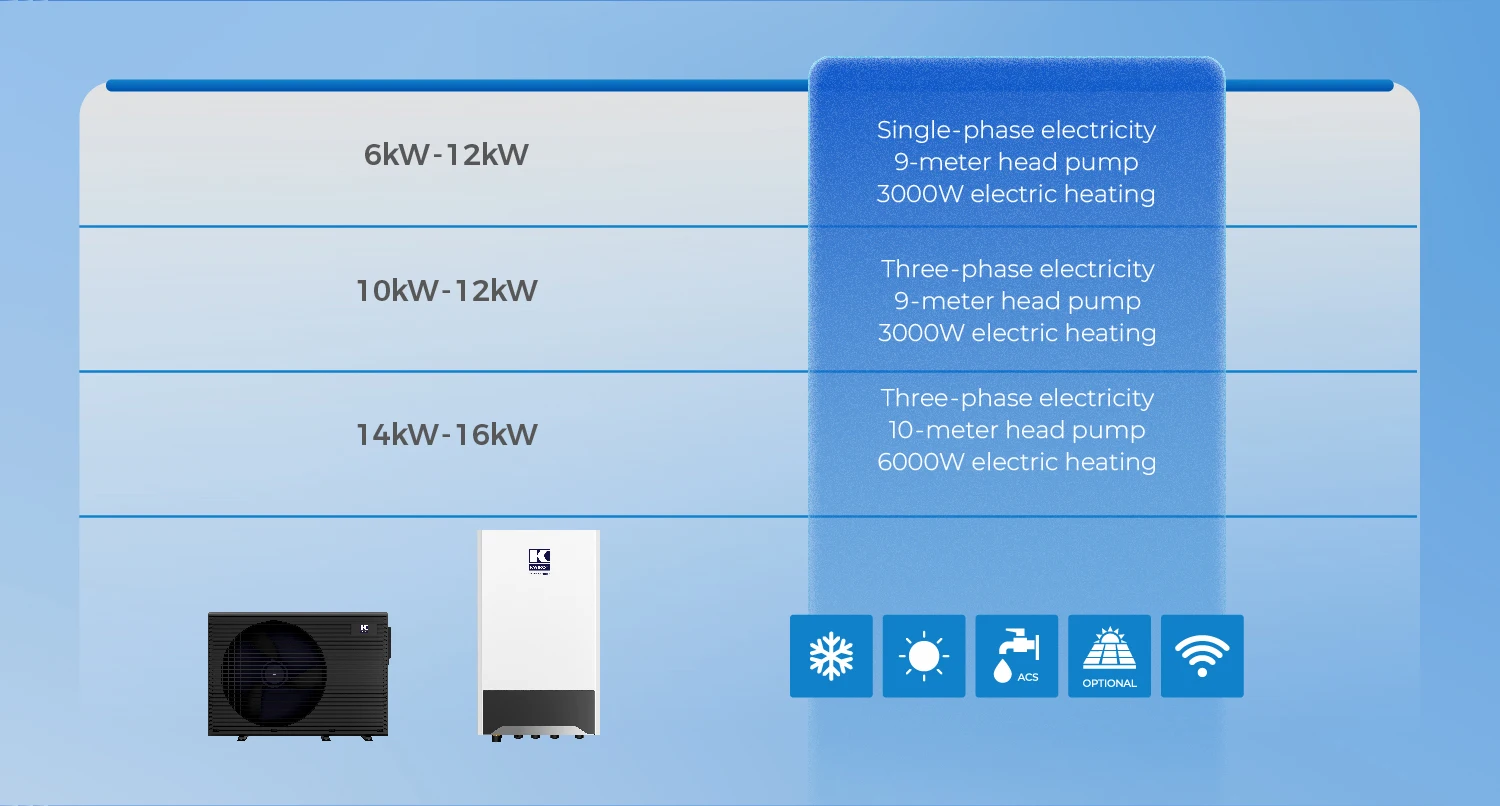

Type Model HPM06-ND2-H HPM08-ND2-H HPM10-ND2-H HPM12-ND2-H HPM10-TND2-H HPM12-TND2-H HPM14-TND2-H HPM16-TND2-H
Power source Power source (V/Ph/Hz) 220 380
Heating Rated heating output (kW) 6 8 10 12 10 12 14 16
35°C Energy eciency class Energy eciency class A+++
55°C Energy eciency class Energy eciency class A+++
Refrigerant Refrigerant R290
Environment temperature Heating (°C) -30-35
Cooling (°C) 10-50
Domestic hot water (°C) -30-50
Water temperature Heating (°C) 25-85
Cooling (°C) 5~25
Domestic hot water (°C) 30-65
Compressor Type DC inverter
Draught fan Type DC inverter

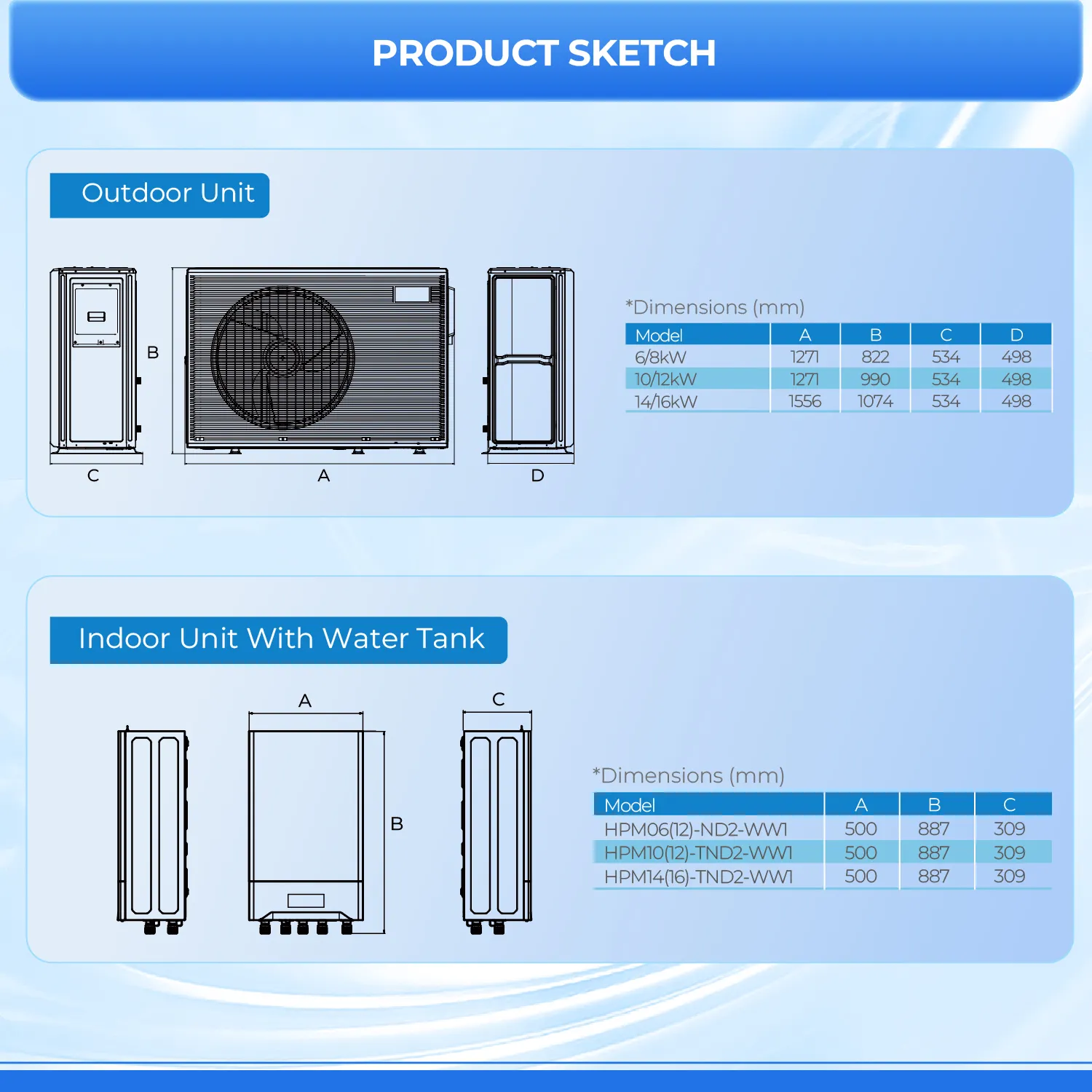

Outdoor unit Outdoor unit dimensions(mm) 1260×430×780 1260×430×780 1300×520×780 1300×520×950

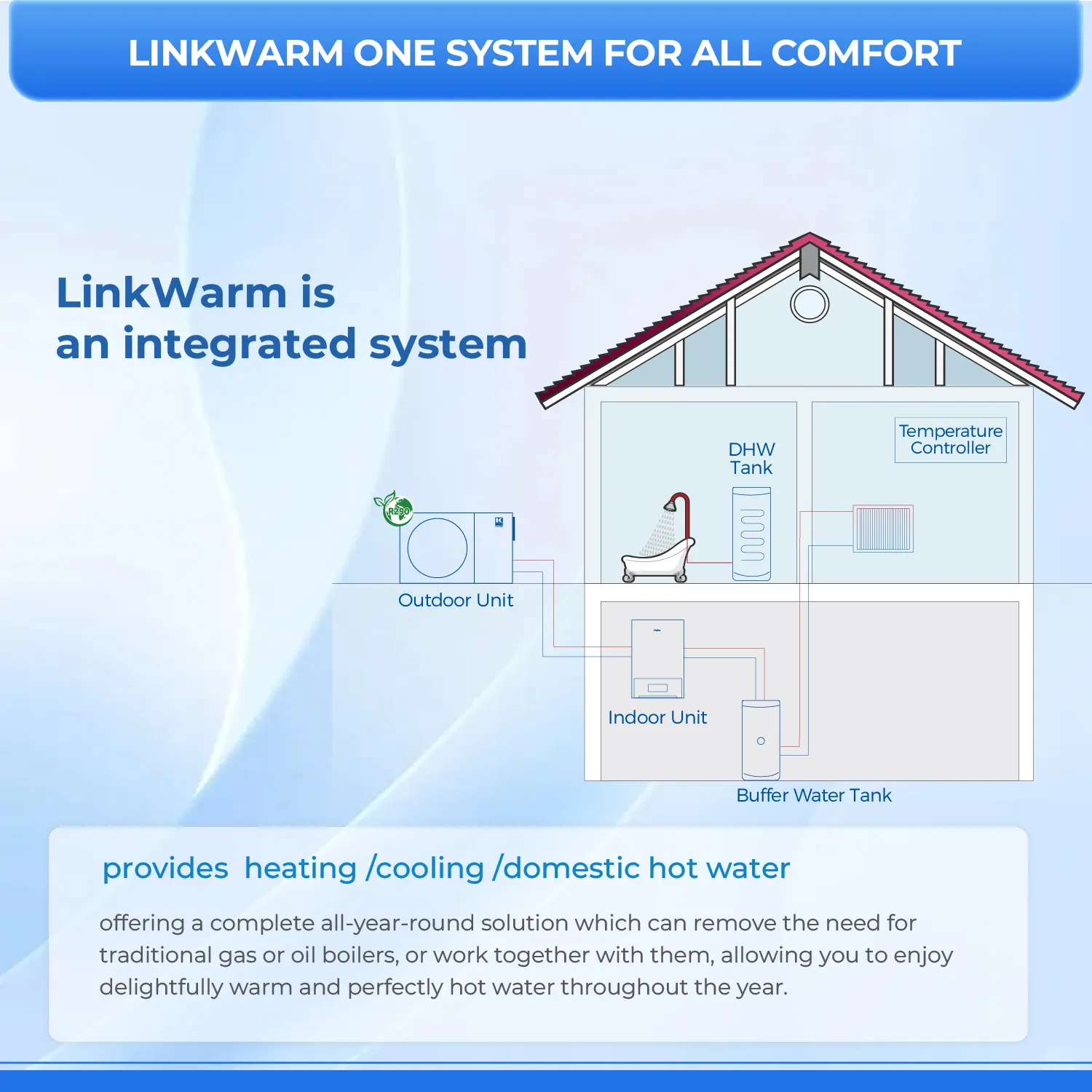

Components Linkwarm One System for All Comfort Linkwarm One System for All Comfort R290 Refrigerant High Water Temperature High Efficiency Safety Low Noise Integrated Easy Installation
